Option Profibus

Introduction

The stereoscopic width measurement gauges DigiScan XD4100 with the option Profibus-DP adds a Profibus DP connection

Physical connection

The physical connection to the Profibus-DP fieldbus is achieved using two shielded twisted pairs

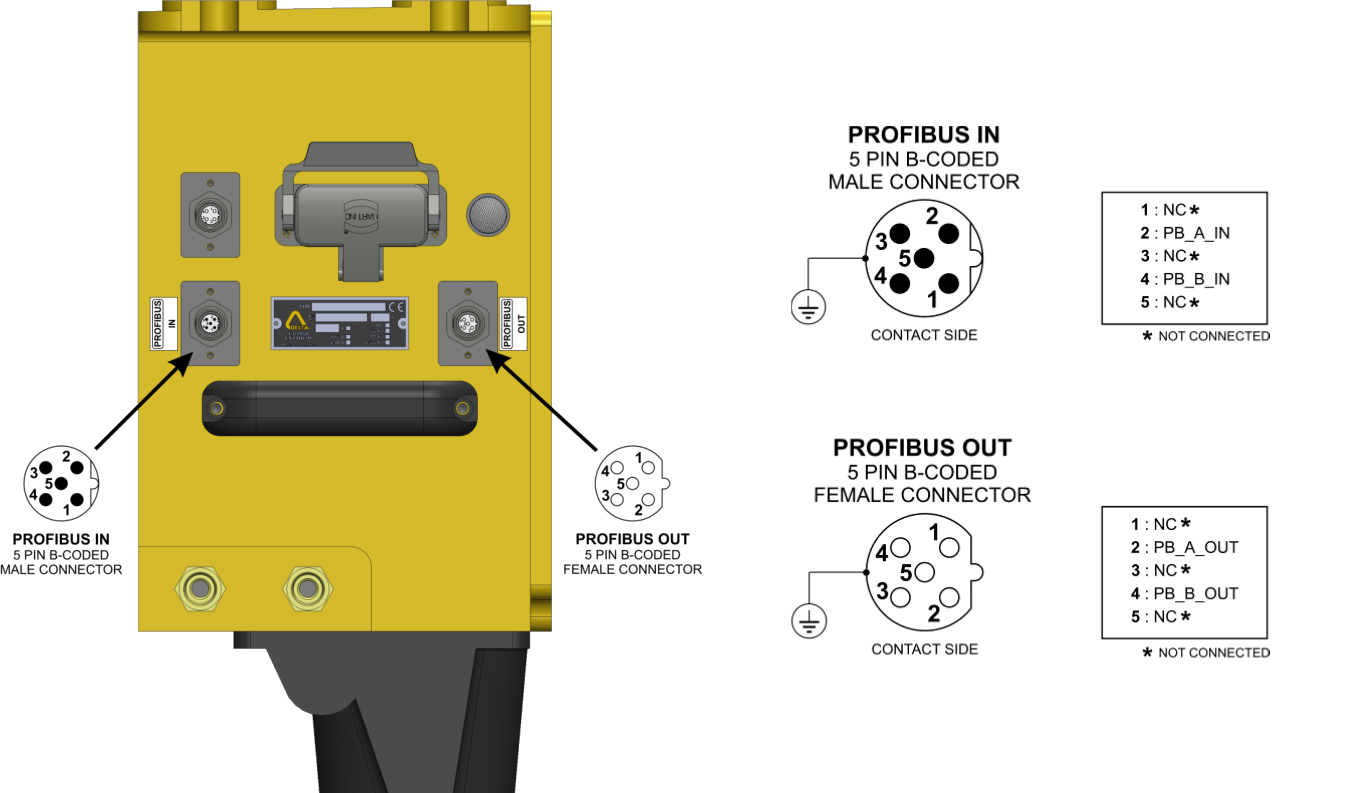

Connectors

The gauge supplies two additional M12 connectors to link with the fieldbus Profibus-DP.

Note

The Profibus-DP serial link is galvanically insulated from the 0V

Terminating resistors

• ONLY ONE XD GAUGE ON THE PROFIBUS-DP SEGMENT

  • Connect the twisted pair from the gauge’s PROFIBUS IN to the master

  • Connect the external terminating resistors to the gauge’s PROFIBUS OUT connector

  • The master should have its own terminating resistors

• XD GAUGE IN LAST POSITION ON THE PROFIBUS-DP SEGMENT

  • Connect the twisted pair from the gauge’s PROFIBUS IN to the previous sensor

  • Connect the external terminating resistors to the gauge’s PROFIBUS OUT connector

  • The first device should have its own terminating resistors

• SEVERAL DEVICES ON THE PROFIBUS DP SEGMENT

  • Connect the twisted pair from the gauge’s PROFIBUS IN to the previous sensor

  • Connect the twisted pair from the gauge’s PROFIBUS OUT to the next sensor

  • On the first device, connect the external terminating resistors on the PROFIBUS IN connector

  • On the last device, connect the external terminating resistors on the PROFIBUS OUT connector

Caution

The bus must start and end with terminating resistors in order to prevent signal reflection

Configuration

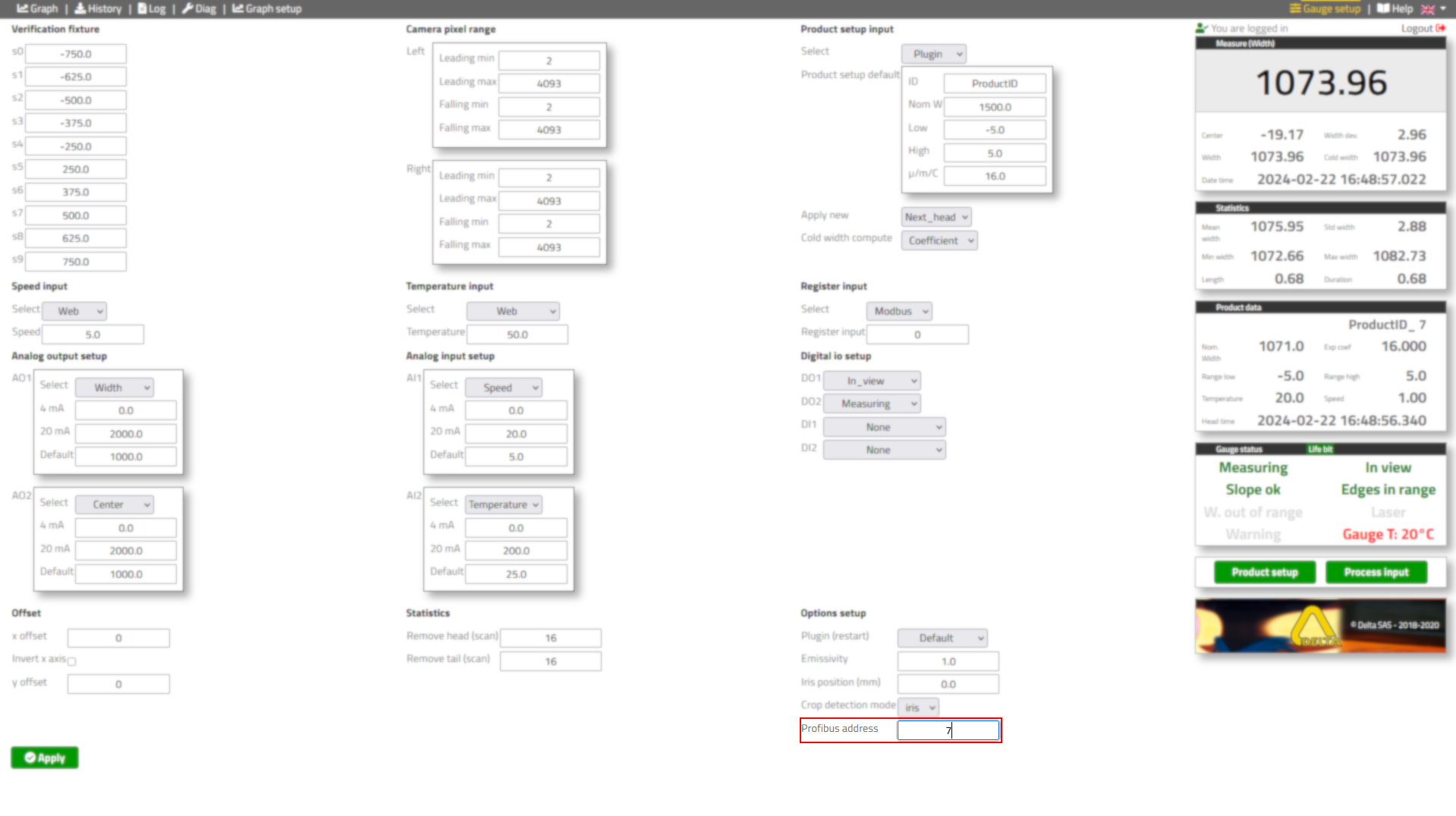

Profibus address

Note

The default Profibus slave address is set to 7 and can be changed in the gauge setup

GSD file

A GSD configuration file is supplied with the product on the gauge’s network drive at the path : /documentation.

Hint

It can also be downloaded on the deltasensor website

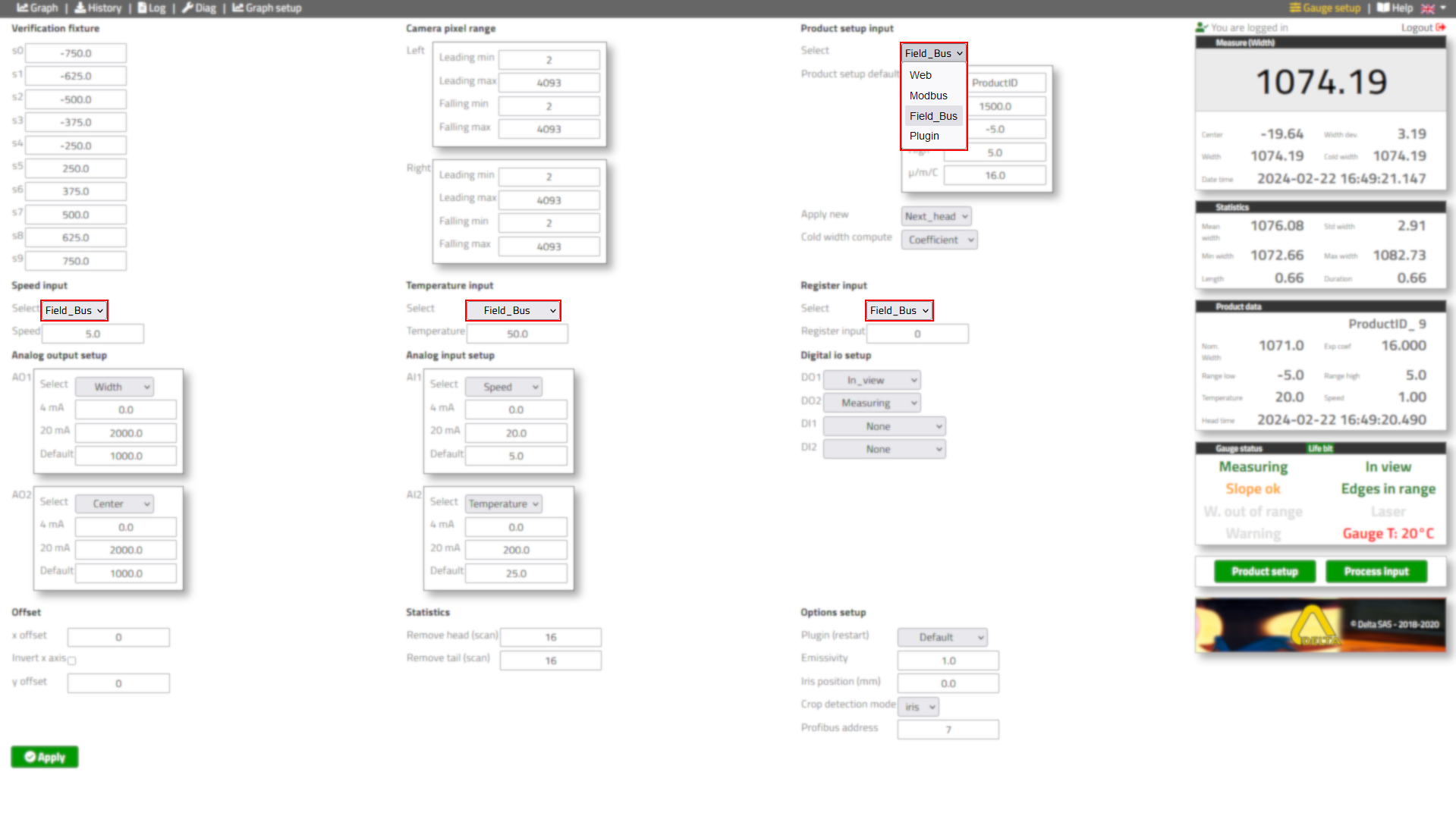

Source selection

Important

Select the Profibus to be the field bus of the speed, temperature and digital inputs in the gauge setup

Data exchange

Data will be transmitted in big endian (M)

Input data

Note

3x registers, input registers : Measurement data (gauge slave -> master)

Registers

Info

IW is an input register of 1 word (16 bits) and ID is a double input register of 2 words (32 bits)

Register	Name	Format	Unit	Option
ID0	Status	(see below)	bitfield	Standard
ID4	Duration	float32	ms	Standard
ID8	Length	float32	m | ft	Standard
ID12	Width	float32	mm | in	Standard
ID16	Cold width	float32	mm | in	Standard
ID20	Width dev	float32	mm | in	Standard
ID24	Center	float32	mm | in	Standard
ID28	Ax	float32	mm | in	Standard
ID32	Ay	float32	mm | in	Standard
ID36	Bx	float32	mm | in	Standard
ID40	By	float32	mm | in	Standard
ID44	Speed	float32	m/s | ft/s	Standard
ID48	Temperature	float32	°C | °F	Standard
ID52	Gauge temperature	float32	°C | °F	Standard
ID56	Reserved
IW60	Head tipA	int16	mm | 0.01in	CropView
IW62	Head tipB	int16	mm | 0.01in	CropView
IW64	Head fish	int16	mm | 0.01in	CropView
IW66	Head position percent	int16	mm | 0.01in	CropView
IW68	Head position bone	int16	mm | 0.01in	CropView
IW70	Head position asym	int16	mm | 0.01in	CropView
IW72	Head position iris	int16	mm | 0.01in	CropView
IW74	Head initial cut	int16	mm | 0.01in	Slider
IW76	Head cut	int16	mm | 0.01in	Strategy
IW78	Head weight	uint16	kg | lb	Strategy
IW80	Head area	uint16	cm² | in²	Strategy
IW82	Head skew	int16	mm | 0.01in	SV6000
IW84	Head camber	int16	mm | 0.01in	SV6000
IW86	Head length	uint16	mm | 0.01in	SV6000
IW88	Tail tipA	int16	mm | 0.01in	CropView
IW90	Tail tipB	int16	mm | 0.01in	CropView
IW92	Tail fish	int16	mm | 0.01in	CropView
IW94	Tail position percent	int16	mm | 0.01in	CropView
IW96	Tail position bone	int16	mm | 0.01in	CropView
IW98	Tail position asym	int16	mm | 0.01in	CropView
IW100	Tail position iris	int16	mm | 0.01in	CropView
IW102	Tail initial cut	int16	mm | 0.01in	Slider
IW104	Tail cut	int16	mm | 0.01in	Strategy
IW106	Tail weight	uint16	kg | lb	Strategy
IW108	Tail area	uint16	cm² | in²	Strategy
IW110	Tail skew	int16	mm | 0.01in	SV6000
IW112	Tail camber	int16	mm | 0.01in	SV6000
IW114	Tail length	uint16	mm | 0.01in	SV6000
IW116	Head height	int16	mm | 0.01in	CropView
IW118	Tail height	int16	mm | 0.01in	CropView
IW120	Temperature center	int16	0.1°C | 0.1°F	Thermal
IW122	Temperature A1	int16	0.1°C | 0.1°F	Thermal
IW124	Temperature B1	int16	0.1°C | 0.1°F	Thermal
IW126	Temperature A2	int16	0.1°C | 0.1°F	Thermal
IW128	Temperature B2	int16	0.1°C | 0.1°F	Thermal
IW130	Temperature A3	int16	0.1°C | 0.1°F	Thermal
IW132	Temperature B3	int16	0.1°C | 0.1°F	Thermal
ID134	Reserved
IW138	Reserved

Register ID0 : Status

Info

Detailing the bitfield of ID0 with each field of type bit and value boolean

Register	Name	Description	Option
ID0.0-7	Reserved
ID0.8	Measure disabled	Measuring system is disabled	Standard
ID0.9	Laser on	Laser is turned on	Standard
ID0.10-15	Reserved
ID0.16	Alarm	Internal temperature above 65°C | 150°F	Standard
ID0.17	Warning	Warning on water, air, plugin, IO, fieldbus, ext. IO, laser, low disk	Standard
ID0.18	Measuring	Measuring system activity	Standard
ID0.19	In view	Light level difference satisfying for inview threshold	Standard
ID0.20	Head available	Head data is available	CropView
ID0.21	Tail available	Tail data is available	CropView
ID0.22	Control	Low margin for inview threshold	Standard
ID0.23	Width out of range	Measured width is out of the range setup by user	Standard
ID0.24	Head initial	Head data is available but not final yet (if slider)	Standard
ID0.25	Tail initial	Tail data is available but not final yet (if slider)	Standard
ID0.26	In range	Edges position outside the specified range	Standard
ID0.27	Reserved
ID0.28	Low disk space	History disk is almost full but the gauge will keep working	Standard
ID0.29	Life bit	1 second on, 1 second off, the gauge is ready	Standard
ID0.30	Reserved
ID0.31	Setup pending	New product setup acknowledged, will be applied on next head	Standard

Output data

Note

4x registers, holding registers : Setup data (master -> gauge slave)

Registers

Info

QW is an output register of 1 word (16 bits) and QD is a double output register of 2 words (32 bits)

Register	Name	Format	Unit	Option
QD0-28	Product ID	32 bytes	ASCII	Standard
QW32	Reserved
QD34	Nominal width	float32	mm | in	Standard
QD38	Range low	float32	mm | in	Standard
QD42	Range high	float32	mm | in	Standard
QD46	Exp coef	float32	µm/°C/m | µft/°F/ft	Standard
QW50	Grade	uint16	table ID	Standard
QW52	Input register	(see below)	bitfield	Standard
QW54	Reserved
QD56	Speed	float32	m/s | ft/s	Standard
QD60	Temperature	float32	°C | °F	Standard
QD64-76	Reserved
QD80	Nominal thickness	float32	mm | in	Strategy
QD84	Density	float32	kg/m³ | lb/ft³	Strategy
QW88	Head percent	uint16	0.001	CropView
QW90	Head bone percent	uint16	0.001	CropView
QW92	Head bone percent cut	uint16	0.001	CropView
QW94	Head asym	uint16	mm | 0.01in	CropView
QW96	Head fish margin	uint16	mm | 0.01in	Strategy
QW98	Head min	uint16	mm | 0.01in	Strategy
QW100	Head max	uint16	mm | 0.01in	Strategy
QW102	Tail percent	uint16	0.001	CropView
QW104	Tail bone percent	uint16	0.001	CropView
QW106	Tail bone percent cut	uint16	0.001	CropView
QW108	Tail asym	uint16	mm | 0.01in	CropView
QW110	Tail fish margin	uint16	mm | 0.01in	Strategy
QW112	Tail min	uint16	mm | 0.01in	Strategy
QW114	Tail max	uint16	mm | 0.01in	Strategy
QD116	Reserved

Register QW52 : Input register

Info

Detailing the bitfield of QW52 with each field of type bit and value boolean

Register	Name	Description	Option
QW52.0-2	Reserved
QW52.3	Disable measure	Disable the measuring system	Standard
QW52.4-6	Reserved
QW52.7	Freeze head slider	Freeze head cut adjustments	Slider
QW52.8	Freeze tail slider	Freeze tail cut adjustments	Slider
QW52.9-15	Reserved
